Model 2 of 5 · 1 story + loft
The One
A single-story home with a tall open volume and a wide loft at the knee line.

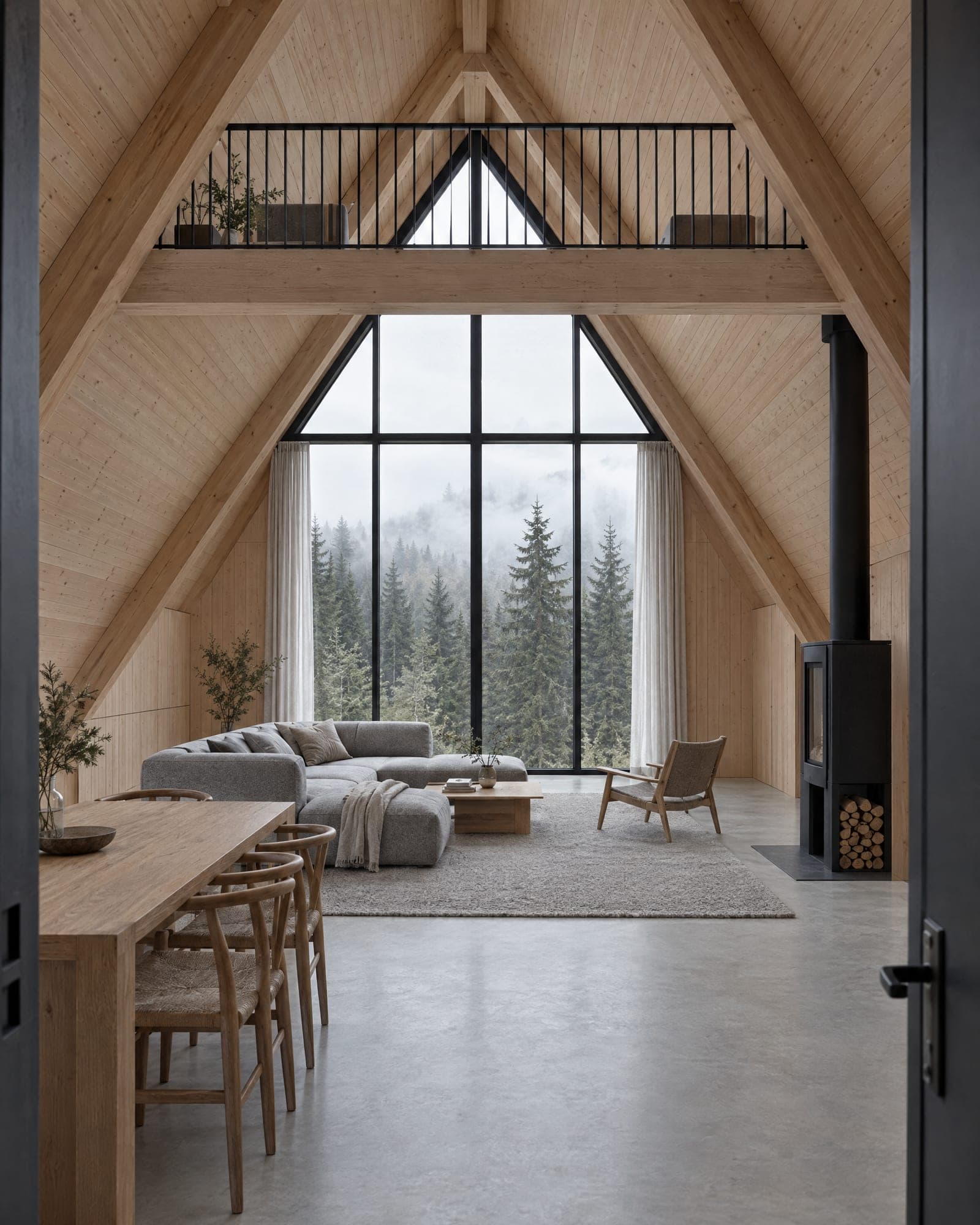

The One is the A-frame most people picture, kicked out at the walls so the main floor is not a triangle. Living, kitchen and a bedroom sit on the main floor; the loft lands exactly where the profile is widest, which makes it a proper second room rather than a crawl space. The gable glazing runs the full height of the house.
- Full-height gable glazing
- Loft at the widest point of the profile
- One bedroom on the main floor

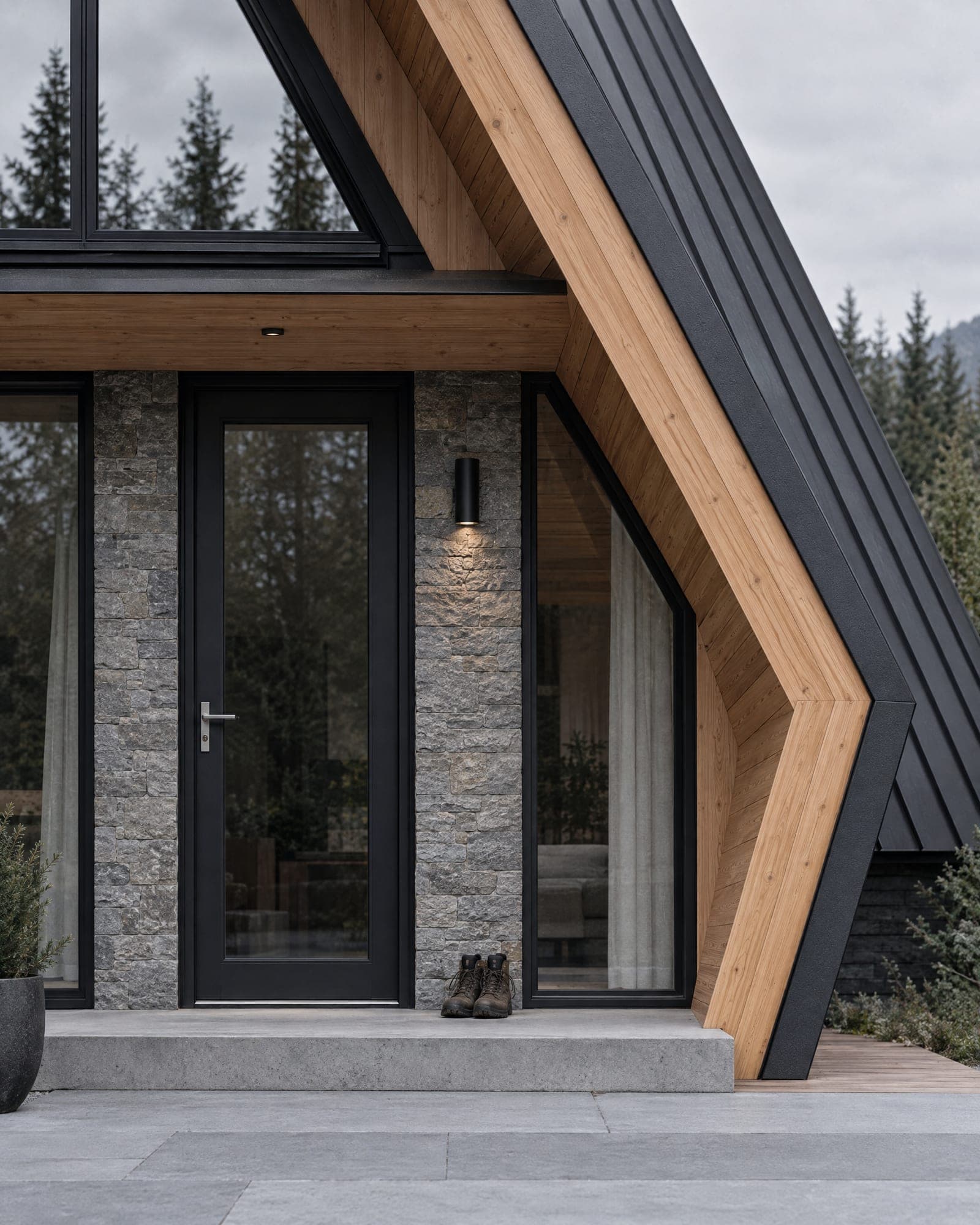

- Covered entry under the kicked wall
- Ships on one truck
- Floor area
- 1010 sq ft94 m²
- Footprint
- 11′ 3″ × 31′ 6″3.4 m × 9.6 m
- Width at knee
- 24′ 11″7.6 m
- Ridge height
- 34′ 7″10.5 m
- Knee height
- 11′ 10″3.6 m
- Levels
- 2Main floor, Loft
- Sleeps
- 2–4
- Bedrooms
- 1 + loft1 bath
- Best for
- Weekend cabins · Rental cabins · Couples · Small lots
The AFRME System™ in The One
- AFRME structural connectorThe steel node at the knee and the ridge.
- AFRME roof cassetteStructure, insulation and metal in one lift.
- AFRME wall panelThe kicked lower wall as one panel.
- AFRME utility spineEvery service routed through one core.
- AFRME foundation interfaceThe steel base that ties the house to the ground.
- AFRME window moduleThe glazed gable as one unit.
Reserve a 2027 build slot for The One.
Free, and not a commitment. A reservation holds your place in the production schedule and gets you pricing and System details before anyone else.
